Pressure Regulator vs. Pressure Control Valve: What's the Difference?

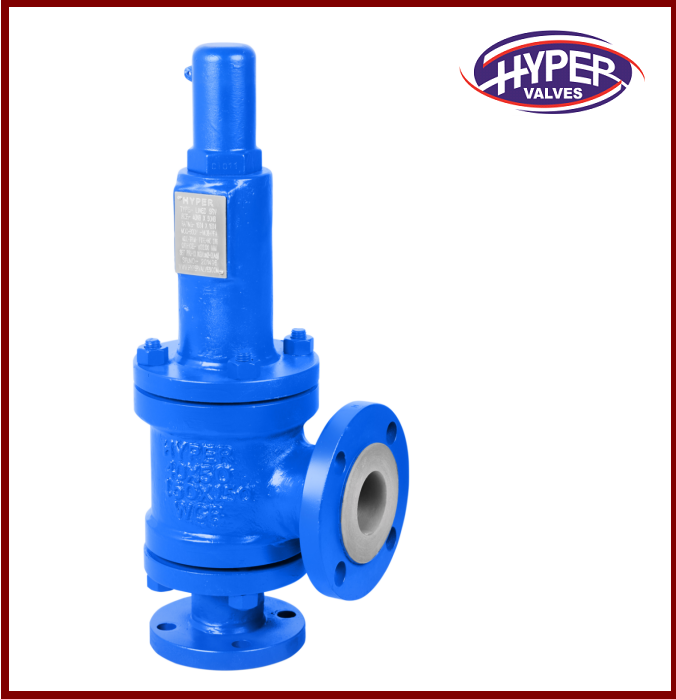

PTFE Lined Pressure Relief Valve regulates fluid flow by opening or closing a valve in response to an electrical signal created by a process variable (temperature, pressure, or level). The process directly controls a regulator.

A pressure regulator, for example, does not require external power to operate; instead, pressure from the fluid on the diaphragm activates the open/close action of the valves.

If the pressure in the pipeline is equal to or slightly below the set point pressure, the PCV will open an output valve to let hydrocarbons. Maintaining a safe transit pressure and correct metering of the item are both aided by automating fluid control in this manner.

Although they operate differently, both a pressure relief valve (PRV) and a pressure control valve (PCV) are used to control pressure.

A PCV is the first line of defense in an oil field, preventing hydrocarbons from flowing through a channel under pressure. A PRV is a static secondary safety device used to 'bleed out' excess pressure from a pressurized system or an oil and gas well.

Pressure Relief Valve vs. Pressure Regulator

A pressure regulator differs from a pressure relief valve in several ways. A pressure regulator, like a PCV, is primary safety equipment used in oil and gas facilities to control pressure. On the other hand, a PRV is a secondary safety device that controls secondary (non-critical) pressure.

Safety Valve for Pressure (PSV)

A pressure safety valveis an instinctive safety device that immediately relieves pressure on a squeezable fluid vessel to prevent critical failure and death from over pressurized vessel conditions.

What is the difference between PCV and PSV?

In terms of function, a PSV and a PCV are very similar. The fundamental difference between a PSV and a PCV is that a PSV's valves open almost wholly when the fluid reaches the setpoint temperature. A PCV's valves open gradually.

Choosing the Correct Control Instrument – Response Time

Pressure regulating valve have a faster reaction time than pressure control valves because they are process-controlled and do not require an intermediate relay system for control.

Continuity between DCS, sensors, and actuators is required for PCVs. As a result, when one component fails, the entire system is vulnerable to instrumentation failure.

What is the goal of a control valve?

A control valve manages fluid flow by changing its size or direction in response to controller input. It aids in the direct control of flow rate and the regulation of other critical process variables, including temperature, liquid level/flow, and pressure. In automatic control terminology, it is also known as the "final control element."

In other words, a Safety Valve is used to regulate the flow, pressure, liquid level, and temperature of a system by entirely or partially opening or closing it in response to controller signals. The positioners control the closing and opening of the electric, hydraulic, and pneumatic actuators, which govern the opening and shutting of the control valve.

How does it work?

To offer constant quality goods, the process plant has several control loops. These control loops have a predetermined pressure, temperature, flow, and level to maintain the desired working range. Internal disturbances occur in each of these control loops, which are monitored by sensors and transmitters. The controllers subsequently analyze the acquired data, who determine what should be done to correct the load disruptions. A controlling element is implemented after the data has been examined, measured, compared, and calculated. The control valve enters the scene at this point and works to lessen the disturbances

As a result, the control valve's working concept relies on manipulating flowing fluids like water, gas, steam, or chemical compounds to guarantee that load disturbance is minimized, and the process variable is regulated to the closest value of the desired set point.

Gate valves are used to open and close doors.

The Automatic Control Valve is made up of a flat barrier that may change the flow area. It has an on-off application and is well suited to regulate high temperature and pressure for various liquid flows. The valves that regulate the automated emergency cut-off and the hand-operated valves have this design or body.

THE BENEFITS OF A GATE VALVE

·         It features an excellent Closing feature.

·         In a circuit, it can be used in either direction.

·         It creates laminar flow, resulting in minimal pressure loss.

GLOBE VALVE

The phrase "globe valve" refers to the outer shape of the valve, which is utilized for throttling. The globe valves have a stem that moves up and down in a linear motion to modify the position of the plug. It has a short stem journey, a lot of seating capacity, a lot of pressure drop, and flow controllability.

THE BENEFITS OF A GLOBE VALVE

·         Has an excellent full-closing feature.

·         Because the strokes are more minor, the valve opens and closes faster than a gate valve.

·         Has a practical throttling feature.

·         With little change in shaft disconnection, it can be used as a stop check valve.

PLUG VALVES

Plug valves are made up of a plug, a body, and a cover and are used for on-off services in refineries, chemical plants, and petrochemical plants. Typically tiny in size, they require less headroom and come in a variety of materials. They provide a tight seal, rapid opening, and minimal pressure drop.

·         It is made up of only a few elements and has a straightforward design.

·         Easily opens and closes.

·         It is simple to maintain and repair at the location of operation.

·         They offer a low flow resistance and a leak-proof feature that is trustworthy.

BALL VALVES

The pressure and flow of corrosive fluids, regular liquids, gases, and slurries are controlled by a ball valve. It also keeps high temperatures and stress under control.

BALL VALVES HAVE MANY BENEFITS

·         Provides a leak-free service.

·         Service that is quick to open and close.

·         When compared to gate valves, it has a relatively modest size.

·         In comparison to gate valves, it is lightweight.

·         Has the ability to reduce the number of valves necessary by using a multi-way design.

·         Under high temperature and pressure conditions, it provides dependable and safe service.

·         When compared to gate and globe valves, it requires less force to operate.

DIAPHRAGM VALVES

For corrosive fluids at low temperatures and pressures, a diaphragm valve is utilized by deforming one surface with force from the valve stem.

ADVANTAGES OF DIAPHRAGM VALVES

·         The diaphragm isolates the working parts from the process fluids completely.

·         Construction is simple, making it easier to operate and maintain.

·         It has hassle-free functioning due to its basic design and convenience of use.

·         It can be utilized for a variety of purposes, including opening, throttling, and closing.

·         It provides solid chemical resistance because it is based on the body's internal sheathing.

·         There is no shaft leakage since the fluid is kept separate from the bonnet group.

·         Heavy chemical, chemical, and radioactive fluids are all compatible.

·         It can protect the system from microbiological contamination because the fluid is kept apart from the bonnet group, and it can be utilized in the food, pharmaceutical, and beer industries.
